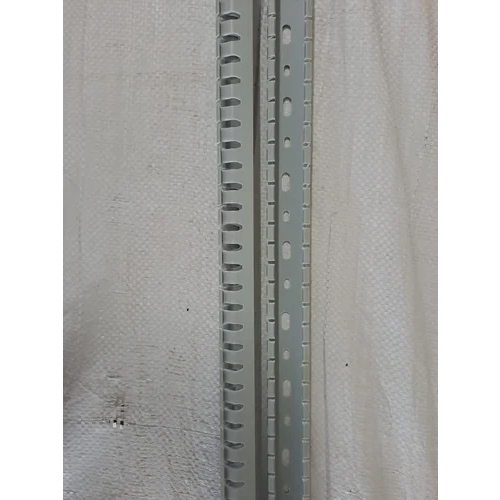

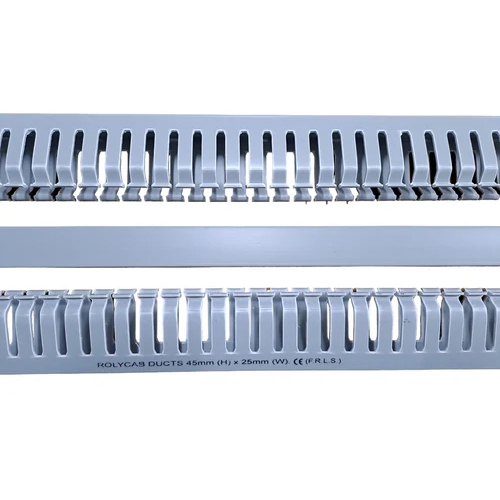

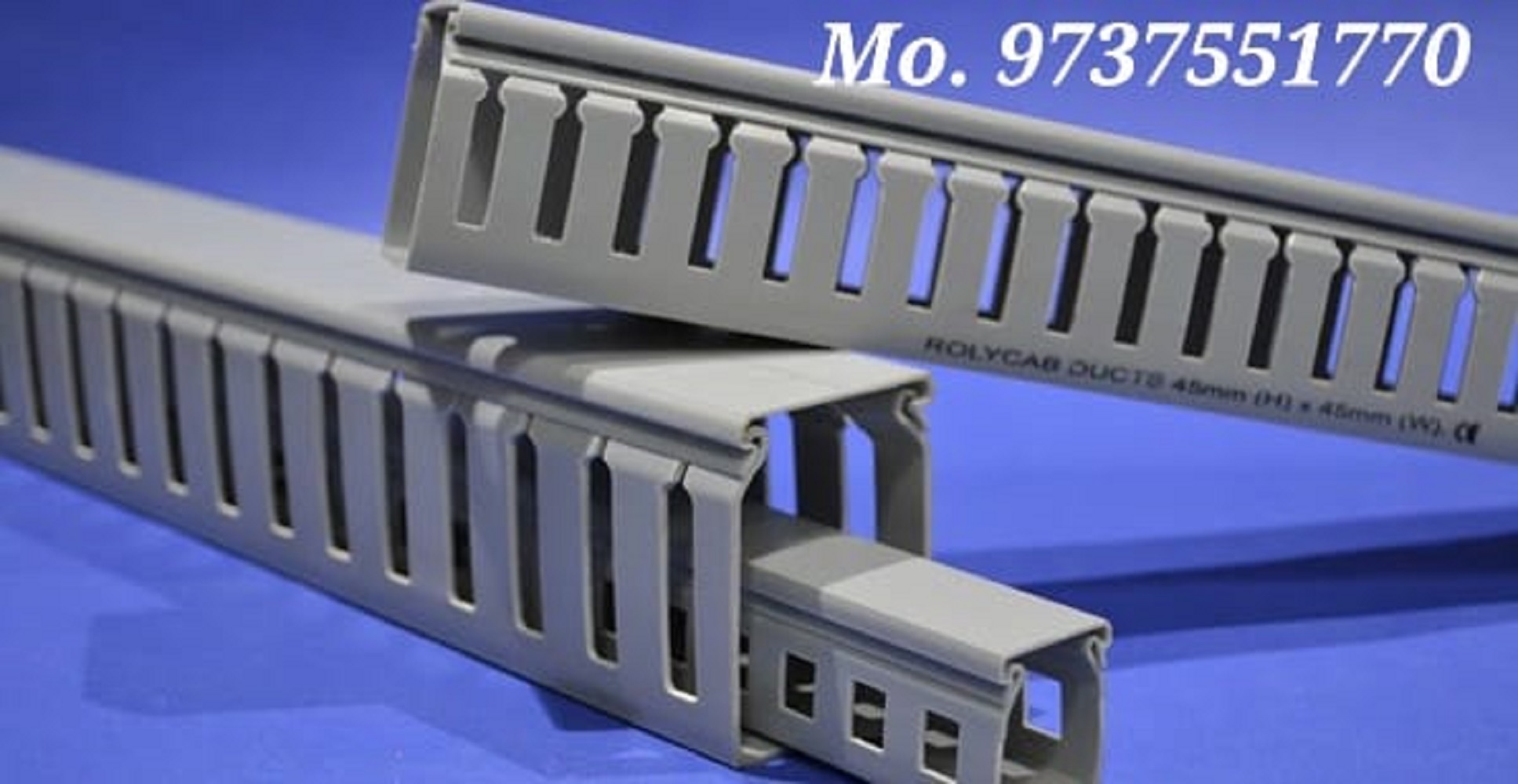

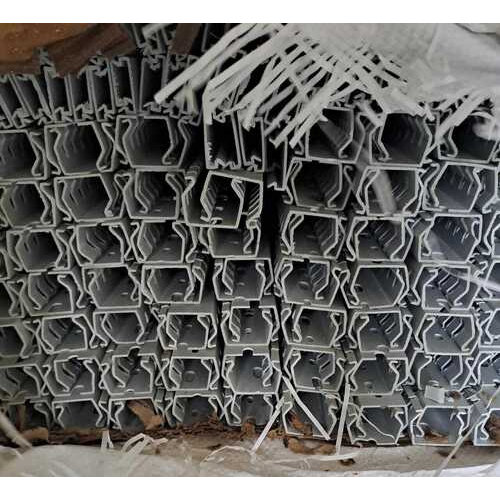

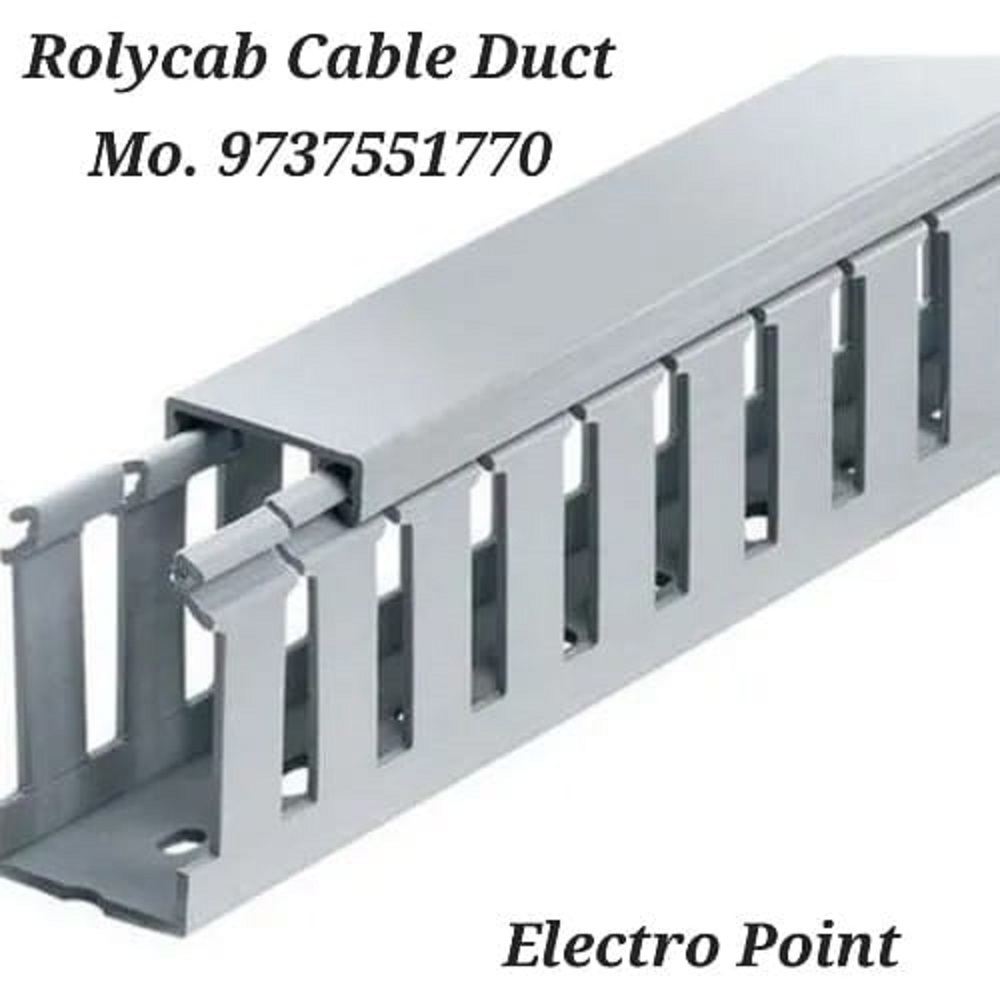

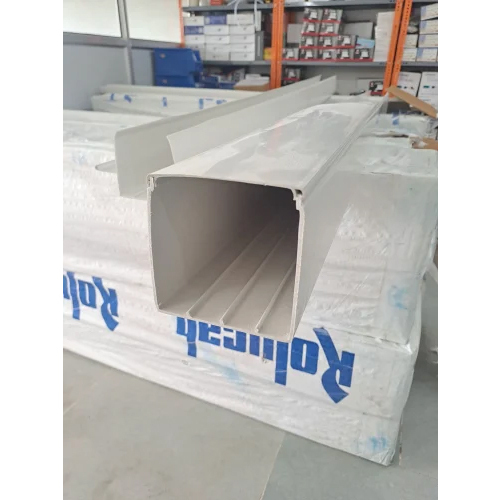

Pvc Channel

About Pvc Channel

Electro Pointis a reliablestockist and supplier of PVC Wiring Channels (also known as PVC Wire Ducts),

1. Material:
   High-quality, durablepolyvinyl chloride (PVC)that is flame-retardant, non-corrosive, and offers excellent insulation properties.

2. Design Features:

   • Slotted or Solid Walls: Available with slotted sides for ventilation and easy wire access, or solid walls for complete enclosure.
   • Snap-on Covers: Comes with secure, snap-fit covers that ensure wires remain protected and organized.
   • Smooth Edges: Prevents damage to cables during installation.

3. Dimensions:

   • Widths: Ranges from 10 mm to 150 mm.
   • Heights: Varies from 10 mm to 100 mm.
   • Lengths: Typically supplied in standard lengths of 1 or 2 meters per piece.

4. Temperature Resistance:
   Operates effectively in a temperature range of-20C to +65C, making it suitable for diverse environments.

5. Color Options:
   Standard colors includewhite, grey, and black, with other custom colors available upon request.

6. Compliance:

   • Meets international standards for electrical safety and fire resistance.
   • RoHS-compliant and eco-friendly.

7. Applications:

   • Control panels.
   • Electrical enclosures.
   • Data centers.
   • Building wiring systems.
   • Automotive and machine wiring.

• Ensurestidy cable management.
• Providesenhanced safetyby reducing the risk of accidental wire exposure.
• Offerseasy installationwith customizable sizes and configurations.
• Improves the overallaesthetic appealof wiring setups.

Material Rigid Polyvinyl Chloride
Sizes 15 x 15 25 x 25 30 x 25 45 x 25 45 x 45 45 x 60 60 x 25 60 x 45 60 x 60 80 x 25 80 x 45 80 x 60 80 x 80 100 x 100
Flammability VL94V0
Color Light Grey RaL7042
Narrow Wide Slot Design
Tensile Strength 390 Kgcm
ISOZ Impact Strength 7 kgcm
Dielectric Strength 36 kVmm
Specific Resistance 6110 ohmo
Mounting Hole Pattern as per DIN 43659
CE FR Certified
